Option Board 16ch SDI I/O (3G/HD/SD)

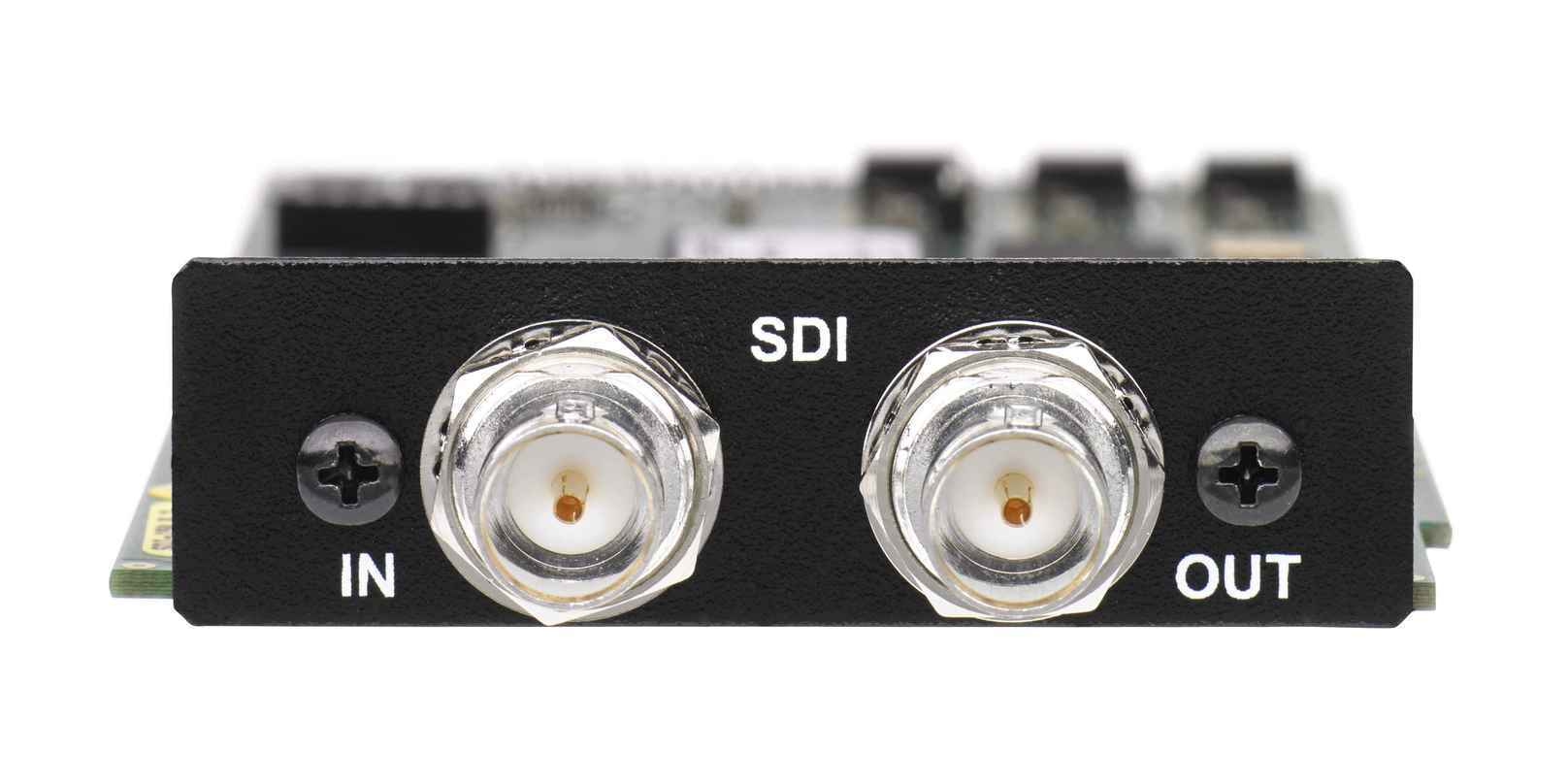

This SDI Interface board for SLIM LINE and AIXpressor allows you to access and to modify all embedded audio channels on a SDI stream. It supports e.g. SDI (3G/HD/SD) - embedding / de-embedding, SDI audio group handling, video delay to compensate audio processing latency and VANC metadata handling.

Option Board 16ch SDI I/O (3G/HD/SD)

Key Features

  • 16 ch audio de-embedder / embedder
  • power fail bypass relay (may be activated via GUI)
  • up to 15 frames video delay for all supported video standards
  • VANC (SMPTE 2020-2) de-embedder / embedder
  • SLIM LINE: 16 x 16 de-embedder matrix (mono routing)
  • SLIM LINE: 32 x 16 embedder matrix (mono routing)
  • 320 ms audio delay per audio channel
  • Lip-Sync compensation for non-processed audio signals
  • AIXpressor: free mono channel routing for embedder and de-embedder

More Features:

  • Standards: 3G - SMPTE 424/425M (Level A/B); HD - SMPTE 292M; SD - SMPTE 259M
  • Formats: 1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60; 1080i50, 59.94, 60; 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 625i50; 525i59.94, …
  • Connector: BNC IEC 169-8); 75 Ohm
  • Return Loss: > 15 dB (typ. > 18dB) from 5MHz to 1485 MHz / > 10 dB (typ. > 11 dB) from 1485 MHz to 2970 MHz

Versions & Options

  • D*AP4 hardware platform: one option slot available for this option board
  • D*AP8 hardware platform: two option slots available for this option board
  • AIXpressor hardware platform: four option slots available for this option board
  • This option board is available for all products listed in Accessories below this page.
